Intelligent Light Control Technology
Switch between transparency and privacy in milliseconds. PDLC smart film transforms any glass surface into an intelligent, controllable interface.
Tap the switch — this is exactly how it works.
Click to toggle ON / OFF
Why PDLC Smart Film?
Privacy on Demand
Switch between transparent and opaque modes instantly for complete privacy control.
UV Protection
Blocks up to 99.9% of harmful UV rays, protecting interior from fading and damage.
IR Rejection
Advanced infrared rejection up to 100% keeps your vehicle cool and comfortable.
Smart Control
Compatible with vehicle power systems for seamless integration and control.
How It Works

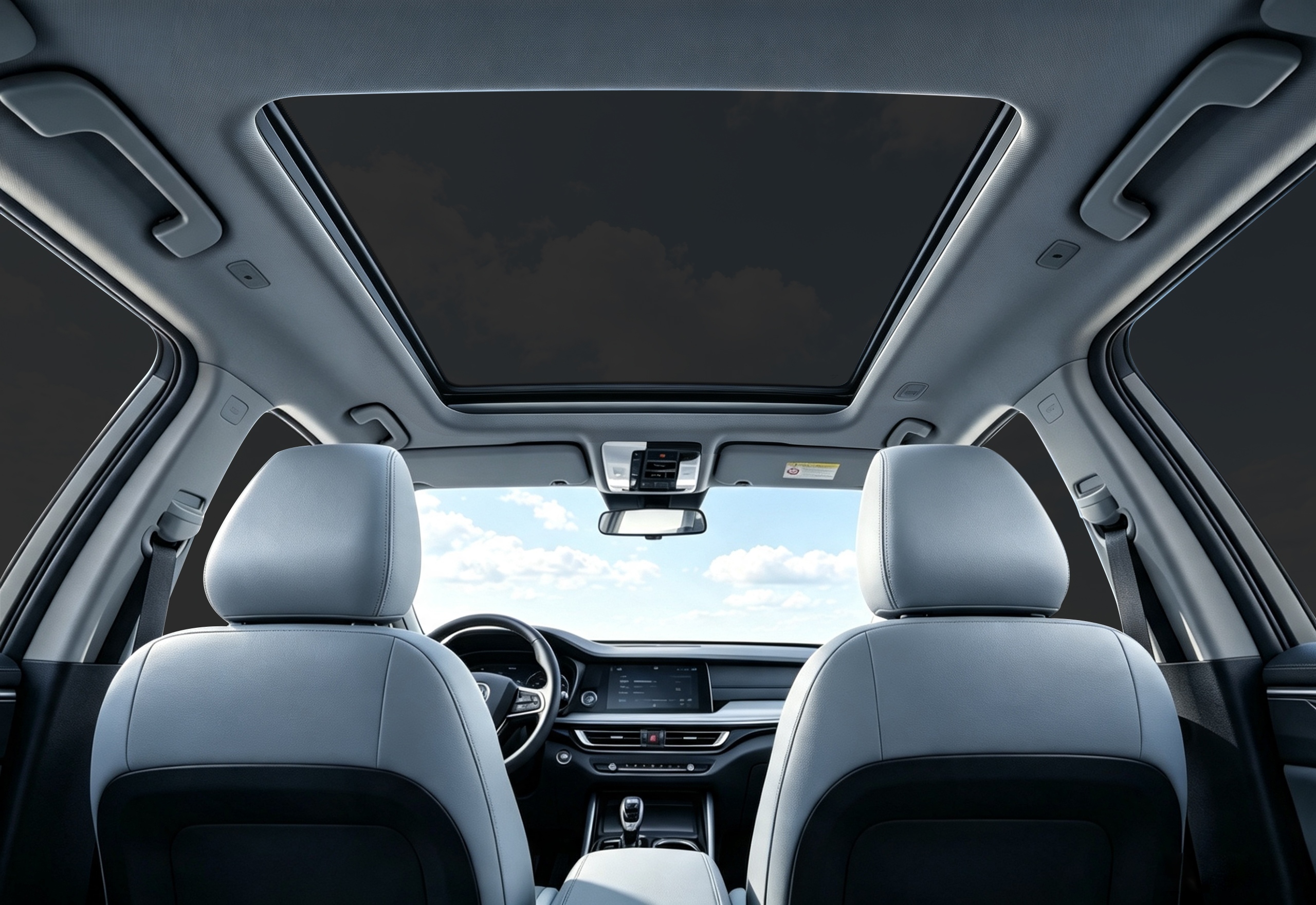

Power Off — Privacy Mode
PDLC molecules are randomly aligned, scattering light and creating an opaque, frosted appearance for complete privacy.

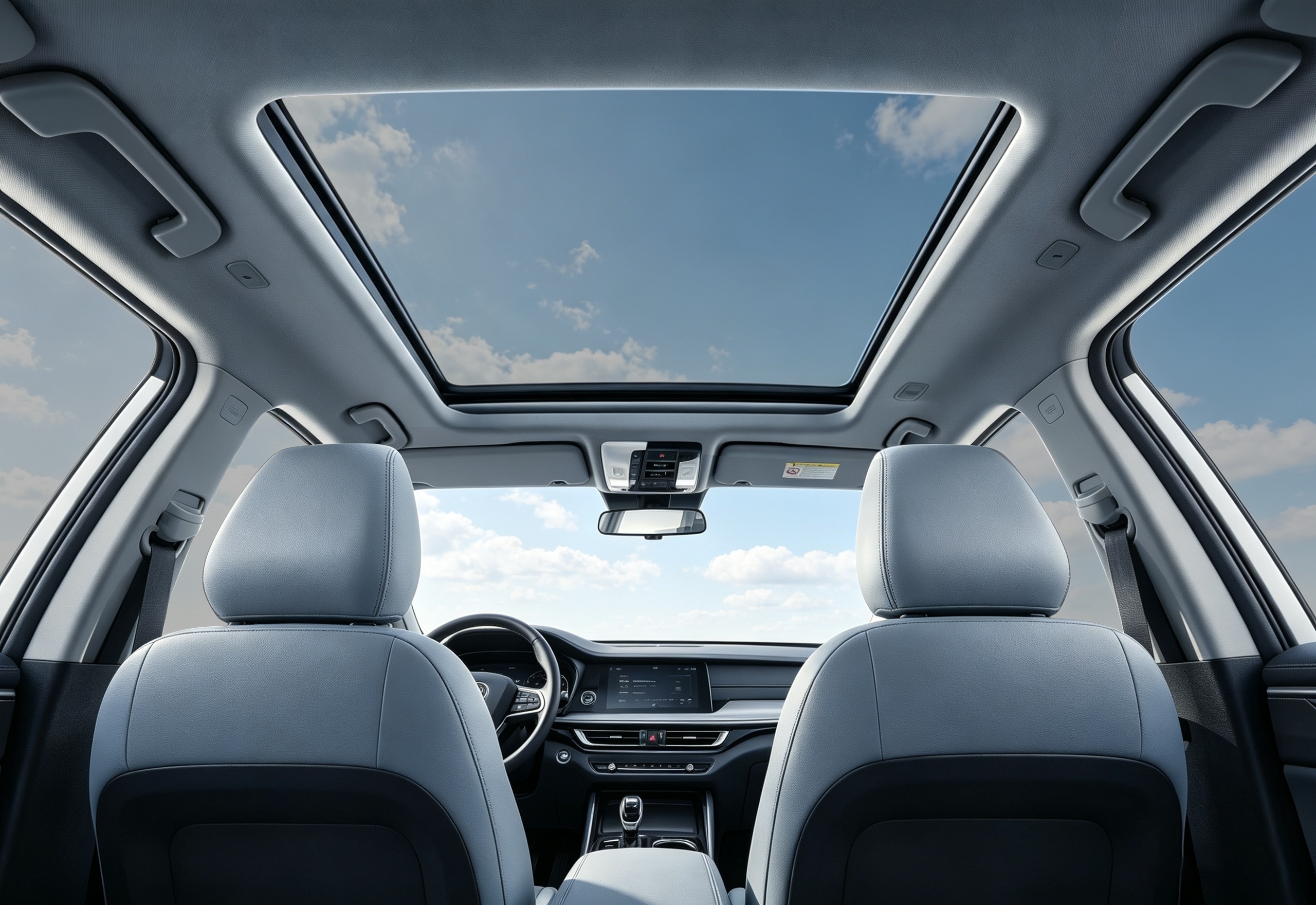

Power On — Transparent Mode
When electricity is applied, molecules align uniformly, allowing light to pass through for crystal-clear visibility.
Instant Switching
Toggle between modes in milliseconds using a simple switch or smart control system.
Smart Integration
Compatible with vehicle power systems and can be controlled via switch, remote, or mobile app.
Drag to compare transparent vs privacy
Tap the switch — this is exactly how it works.
Click to toggle ON / OFF
Why PDLC Smart Film?
Dynamic Privacy
Transform glass from clear to opaque in milliseconds for instant privacy.
Glare Reduction
Reduce harsh glare while maintaining natural light transmission.
UV Blocking
Blocks up to 100% of UV rays, protecting interiors and occupants.
Smart Integration
Compatible with building automation systems for intelligent control.
How It Works

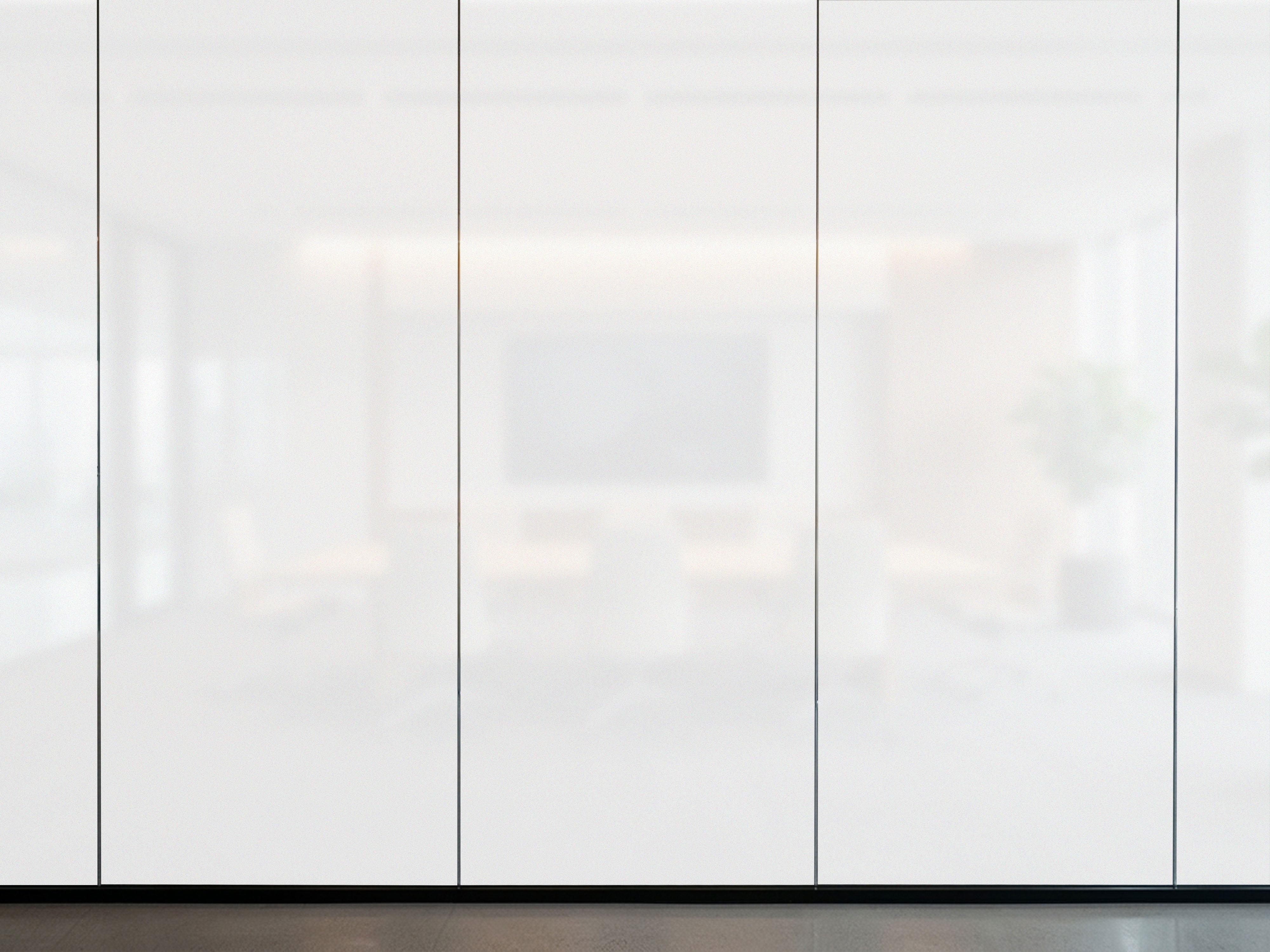

Power Off — Frosted Privacy
Without power, PDLC film appears frosted and opaque, providing immediate privacy for any space.

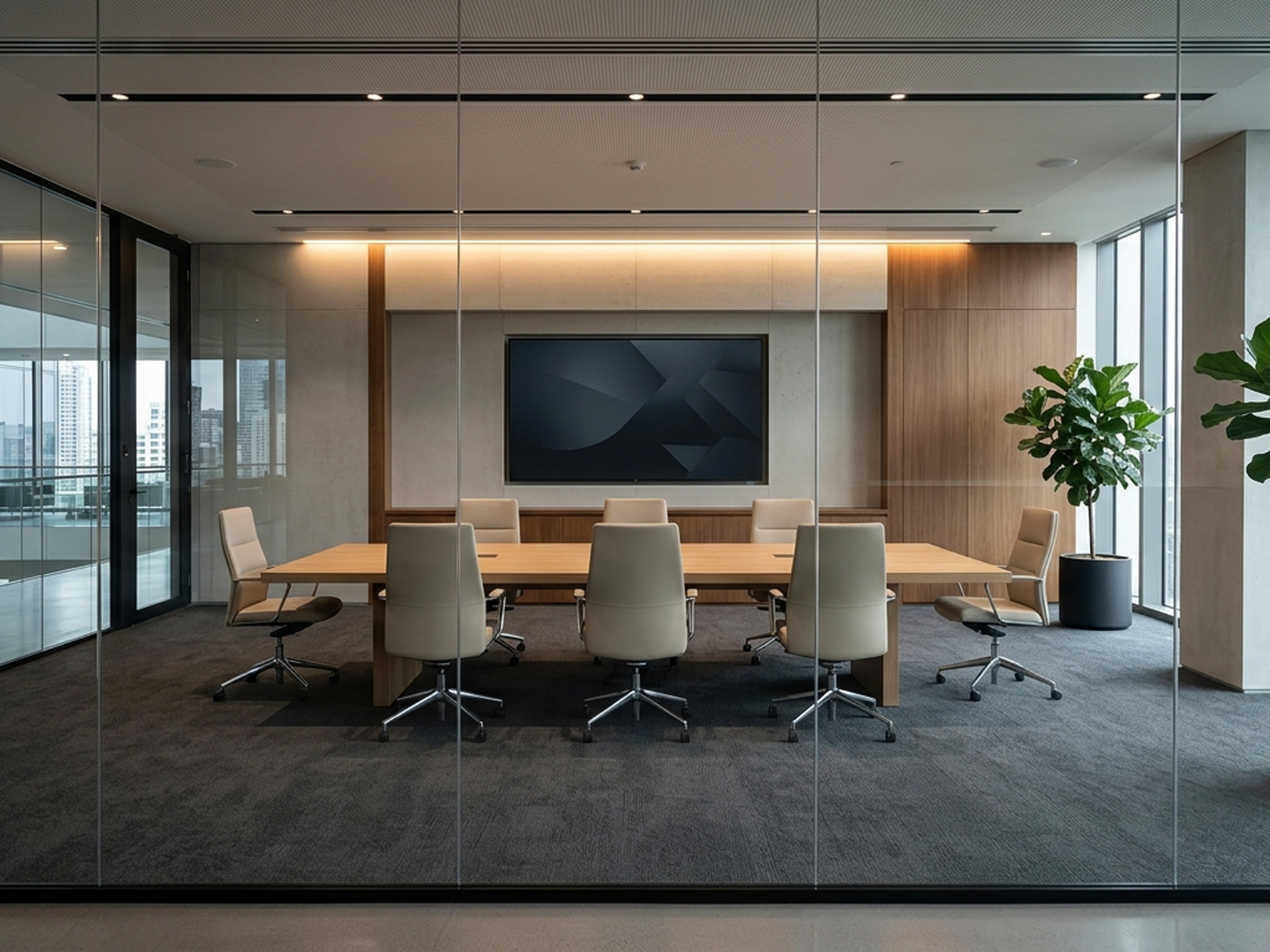

Power On — Clear Transparency
Applying low-voltage electricity aligns liquid crystal molecules, creating a clear, transparent view.
Architectural Integration
Dry self-adhesive backing allows easy installation on any glass surface — windows, partitions, doors.
Building Automation
Integrates with smart building systems for automated control based on time, occupancy, or preferences.
Drag to compare transparent vs privacy
Our PDLC Products
Explore our complete range of PDLC films and control solutions. Use filters to find the perfect product for your project.
Smart Window Film
White
Smart Window Film
White
Smart Window Film
Light Grey
Smart Window Film
Light Grey
Smart Window Film
Dark Light
Smart Window Film
Dark Light
Smart Window Film
Black
Smart Window Film
Black
LC Film
LC Film
LC Film
LC Film
White PDLC Smart Film
White
White PDLC Smart Film
White
Showing 1–12 of 36 products
Applications
PDLC smart film is versatile enough for any glass surface, from vehicle roofs to building windows.
Sunroof Privacy
Instant privacy for vehicle sunroofs and panoramic roofs.
Side Windows
Switchable tint for vehicle side windows.
Rear Windows
Privacy and UV protection for rear windshields.
Office Partitions
Dynamic privacy for meeting rooms and offices.
Home Windows
Smart privacy control for residential windows.
Hotel Rooms
Enhanced privacy and luxury for hospitality.
Healthcare
Hygienic, switchable privacy for medical facilities.
Transportation
Smart film for trains, buses, and public transit.
Retail Displays
Dynamic projection surfaces for retail environments.
Conference Rooms
Instant privacy for sensitive discussions.
Technical Specifications
Comprehensive technical data for PDLC smart film. All specifications tested under standard conditions.
Optical Performance
Electrical Specifications
Durability & Lifespan
Environmental
Physical Properties
Certifications & Standards
CE Certified
European Conformity
RoHS
Restriction of Hazardous Substances
REACH
EU Chemical Safety Regulation
FMVSS 205
US Automotive Safety Standard
Technical Specifications
Comprehensive technical data for PDLC smart film across all product variants. All specifications tested under standard laboratory conditions.
Optoelectrical Properties
4 Variants| Parameter | TPDLC-100 | TPDLC-200 | TPDLC-300 | TPDLC-400 | Details |
|---|---|---|---|---|---|
VLT (Power On) | ≥ 88% | ≥ 90% | ≥ 91% | ≥ 92% | |
VLT (Power Off) | < 5% | < 3% | < 2% | < 1.5% | |
Haze (Power On) | < 3% | < 2.5% | < 2% | < 1.5% | |
Switching Time | < 80ms | < 60ms | < 50ms | < 40ms | |
Operating Voltage | AC 24V | AC 24V | AC 60V | AC 60V | |
Power Consumption | < 15 | < 12 | < 10 | < 8 | |
Operating Temp | -20 ~ 70 | -30 ~ 80 | -30 ~ 80 | -40 ~ 85 | |
Response Time | < 150ms | < 120ms | < 100ms | < 80ms | |
View Angle | 160° | 165° | 170° | 175° |
* All measurements performed under standard conditions (25°C, 50% RH). Actual performance may vary based on installation conditions.
PDLC Smart Film Composite Architecture
Eight precision-engineered layers work in concert to deliver instant privacy switching, UV rejection, and optical clarity — all within a total film thickness of less than 100μm.
Cross-Section View
Hover or tap a layer to inspect
Layer Specifications
Click a layer on the diagram to view details
PDLC Liquid Crystal Layer
Polymer-Dispersed LC
Core functional layer — LC droplets scatter light in off-state (opaque) and align with the electric field in on-state (transparent). Switching occurs in <50ms.
All 8 Layers
Electrode Configuration & Material Stack
Detailed electrode specifications and cross-sectional material stack for PDLC smart film. Click any row to expand technical details.
Electrode Specifications
Material Stack — Cross Section
Anti-scratch protective layer
Transparent conductive oxide
Optically clear adhesive (OCA)
Polymer-dispersed liquid crystal
Optically clear adhesive (OCA)
Transparent conductive oxide
Base flexible substrate
Pressure-sensitive adhesive for glass bonding
Removed before installation
* Excluding release liner (removed during installation)
Weathering & Mechanical Properties
Rigorous testing ensures long-term durability and reliable performance across extreme environmental conditions.
Weathering Tests
Environmental durability validation
| Test | Method | Conditions | Result | Status |
|---|---|---|---|---|
UV Resistance | ASTM G154 | 1000h | No yellowing, no delamination | PASS |
Thermal Cycling | — | -40°C to 85°C, 500 cycles | No cracking | PASS |
Humidity Resistance | — | 85°C / 85% RH, 1000h | No degradation | PASS |
Salt Spray | ASTM B117 | 500h | No corrosion | PASS |
Temperature Shock | — | -40°C ↔ 85°C, 100 cycles | No delamination | PASS |
Chemical Resistance | — | IPA, acetone | No damage | PASS |
Mechanical Properties
Structural integrity metrics
| Property | Test Method | Value | Status |
|---|---|---|---|
Tensile Strength | ASTM D882 | ≥150 MPa | PASS |
Elongation at Break | ASTM D882 | ≥5% | PASS |
Peel Strength | ASTM D3359 | ≥1.5 N/mm | PASS |
Hardness | ASTM D3359 | 2H | PASS |
Adhesion Strength | ASTM D3330 | ≥2.0 N/mm | PASS |
Flexural Resistance | Internal Method | ≥10,000 cycles | PASS |
All Tests Passed
12/12 tests completed successfully — PDLC film meets or exceeds industry standards
Quality Standards & Inspection Protocol
Comprehensive defect classification and multi-stage inspection process ensuring every PDLC smart film meets the highest quality benchmarks.
Defect Classification
| Defect Type | Acceptance Criteria | Severity |
|---|---|---|
Pinholes | ≤ 0.3 mm | Minor |
Scratches | Width ≤ 0.1 mm, Length ≤ 5 mm | Minor |
Bubbles | Diameter ≤ 0.5 mm | Major |
Delamination | Not allowed | Critical |
Electrode Break | Not allowed | Critical |
Switching Failure | Not allowed | Critical |
Color Deviation | ΔE ≤ 3 | Minor |
Haze Non-uniformity | ≤ 5% | Minor |
Inspection Protocol
Incoming Inspection
Per batch
Method
Raw material check
Standard
AQL 1.0
Verify raw PDLC material certificates, thickness, and base film quality before production begins.
In-Process Inspection
Every 100 m
Method
100% visual inspection
Standard
IPC-A-610 Class 2
Continuous visual examination during lamination and coating processes to catch defects early.
Final Inspection
Every roll
Method
100% electrical test + full optoelectrical
Standard
IEC 61347
Complete electrical switching test and optoelectrical measurement including haze, transmittance, and response time.
OBA Inspection
Per shipment
Method
Random sampling
Standard
AQL 0.65
Outgoing box audit with random sampling to ensure batch quality meets customer specifications.
Packaging Inspection
Per package
Method
Label & packaging integrity
Standard
ISO 780 / Internal
Verify correct labeling, protective packaging, moisture barrier seals, and shipping documentation.
8
Defect Categories
5
Inspection Stages
AQL 0.65
Final Acceptance
100%
Electrical Testing
Download Complete Specification Package
Access comprehensive technical documentation including optical performance data, electrical specifications, installation procedures, and certification reports — all in one package.
ISO 9001 Certified
SGS Tested
5 Year Warranty
24h Technical Support
Need technical consultation? Contact our engineering team at sales@topsayppf.com
PDLC vs Other Films
See how PDLC smart film compares to traditional window films.
| Feature | PDLC Film | Tint Film | Frosted Film |
|---|---|---|---|
| Switchable Privacy | ✓ | — | — |
| UV Blocking | 99% | 95% | 90% |
| IR Rejection | Up to 98% | Up to 80% | Up to 50% |
| Transparent Mode | ✓ | — | — |
| Projection capable | ✓ | — | — |
| Smart Control | ✓ | — | — |
Installation Guide
Professional installation guide for automotive PDLC smart film. Follow these steps for optimal results.
Safety Warning
Always disconnect the vehicle battery before performing electrical connections. PDLC film operates on low voltage but improper wiring can damage vehicle electronics. Professional installation is recommended.
Required Materials
PDLC Smart Film
4 panels (Full Kit) or 2 panels (Half Kit)
Power Supply
1 unit (12V/24V DC)
Wiring Harness
1 set (pre-cut for vehicle)
Control Switch
1 unit (toggle or momentary)
Adhesive Promoter
1 bottle (3M 94 Primer)
Isopropyl Alcohol
70%+ solution for cleaning
Microfiber Cloths
3-5 lint-free cloths
Squeegee
1 soft-edge felt squeegee
Heat Gun
1 unit (for contouring)
Utility Knife
1 precision blade
Installation Steps
Professional Tips
Work in a dust-free environment — a garage with sealed doors is ideal for automotive installations.
Use a heat gun on low setting to contour film around curved glass surfaces. Keep the gun moving to avoid overheating.
Apply adhesive promoter to glass edges before film application — this ensures long-term adhesion on vehicle glass.
Leave 2-3mm gap between film edge and glass edge to account for thermal expansion during vehicle operation.
Maintenance & Care
Proper maintenance ensures optimal performance and extends the lifespan of your PDLC smart film.
Regular Cleaning
Use a soft microfiber cloth with mild soapy water. Gently wipe the film surface in one direction. Avoid circular motions that can create swirl marks.
Do
- Use soft microfiber cloths
- Use mild soap or glass cleaner
- Wipe in one direction
- Clean monthly for best results
Don't
- Never use abrasive cleaners or scrub pads
- Never use ammonia-based cleaners (Windex)
- Never use razor blades or sharp objects
- Never apply excessive pressure
Stain Removal
For stubborn stains, use isopropyl alcohol (70%+) on a soft cloth. Apply gently and rinse with clean water. Test on a small area first.
Do
- Test cleaning solution on small area first
- Use isopropyl alcohol for tough stains
- Rinse thoroughly after cleaning
- Dry with clean microfiber cloth
Don't
- Never use acetone or solvent-based cleaners
- Never use bleach or harsh chemicals
- Never let stains sit for extended periods
- Never use paper towels (they scratch)
Protection
PDLC film is durable but requires proper care. Avoid contact with sharp objects. Protect edges from peeling by keeping them clean and dry.
Do
- Keep sharp objects away from film surface
- Protect film edges from moisture intrusion
- Use window treatments to reduce UV exposure
- Inspect edges quarterly for adhesion issues
Don't
- Never apply stickers or adhesive tapes directly on film
- Never allow pets to scratch the film surface
- Never use film on damaged or cracked glass
- Never ignore edge lifting — address immediately
Electrical Care
Ensure control box has proper ventilation. Check wiring connections annually. Keep control box away from moisture and extreme heat sources.
Do
- Ensure control box has adequate ventilation
- Check wiring connections annually
- Keep control box dry and cool
- Test switching function monthly
Don't
- Never block control box ventilation
- Never expose control box to direct water
- Never modify wiring without professional guidance
- Never exceed rated power capacity
Warranty & Lifespan
- PDLC films are rated for 50,000+ switching cycles with proper care
- 3-year warranty covers manufacturing defects and adhesive failure
- Expected lifespan of 10+ years with proper installation and maintenance
- Warranty does not cover damage from improper cleaning or unauthorized modifications
Frequently Asked Questions
Everything you need to know about our products.
What is PDLC smart film?
How long does PDLC film last?
Is PDLC film safe for vehicles?
Can PDLC film be installed on any glass?
How is PDLC film controlled?
Does PDLC film block UV rays?
What is the difference between Full Kit and Half Kit?
What is the difference between Slice and Roll for architectural film?
Can PDLC film be used as a projection screen?
What voltage does PDLC film require?
How do I clean and maintain PDLC film?
Is professional installation required?
Ready to Transform Your Glass?
Whether you need a sample for testing, a detailed quote for your project, or professional installation — we're here to help.
3-Year Warranty
Full coverage
50,000+ Cycles
Tested lifespan
CE Certified
European standard
1000+ Installations
Worldwide
